Fourier Masking

import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
from PIL import Image

from imagemks.rw import listload
from imagemks.masking import maskfourier
from imagemks.structures import donut, wheel

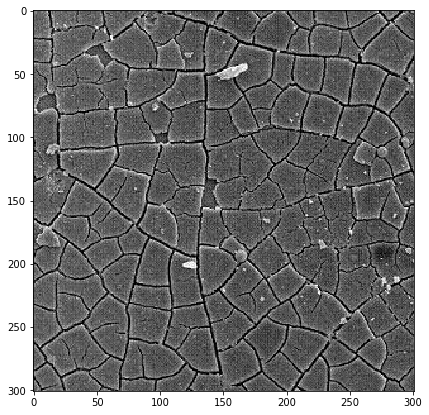

Loading a Microstructure Image

path_to_data = '/home/sven/Projects/ImageMKS/examples/figs/'
loader = listload(path_to_data)

A = loader[0].crop(box=(0,0,301,301))

A = np.array(A)
A = A[:,:,0]
plt.figure(figsize=(7,7))
plt.imshow(A, cmap='gray')
plt.show()

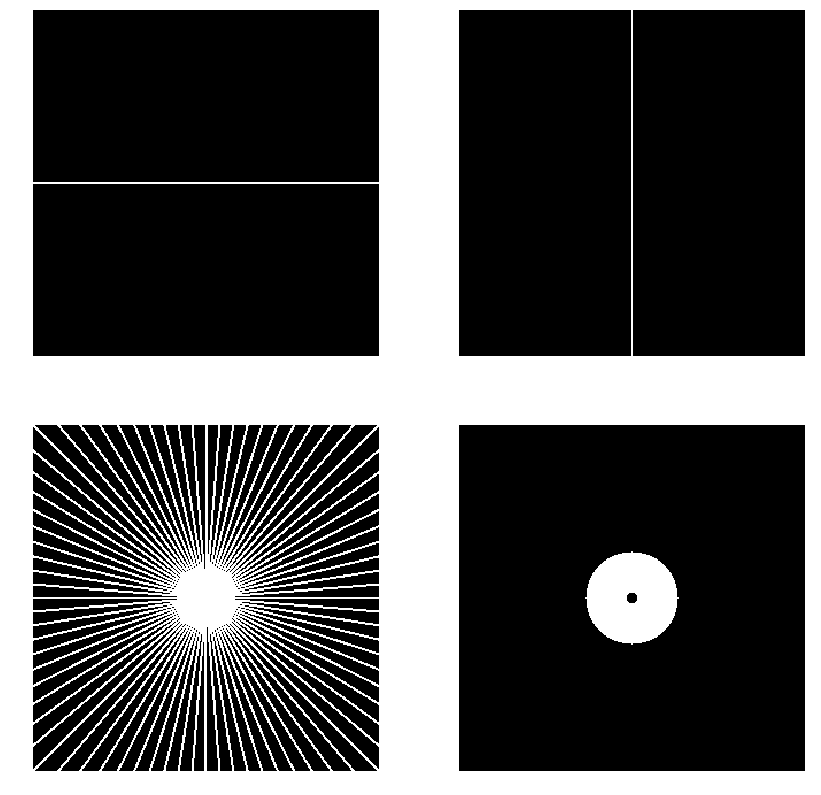

Masks

mask_x = np.zeros(A.shape).astype(np.bool_)
mask_x[A.shape[0]//2,:] = True
mask_y = np.zeros(A.shape).astype(np.bool_)
mask_y[:,A.shape[0]//2] = True

mask_wheel = wheel(20, 1, size=A.shape)
mask_donut = donut(40,5, size=A.shape)

fig, axs = plt.subplots(2,2,figsize=(14,14))

for i, (ax, im) in enumerate(zip(axs.ravel(), (mask_x, mask_y, mask_wheel, mask_donut))):
    ax.imshow(im, cmap='gray')
    ax.axis('off')

plt.show()

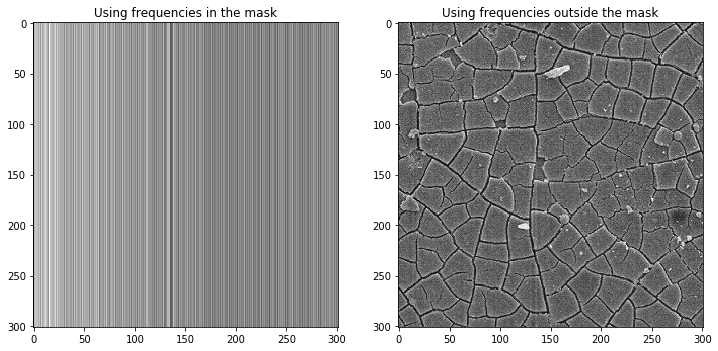

X Frequency Mask

The image on the left shows the intensity changes along the x direction.

A_in, A_out = maskfourier(A, mask_x)

fig, axs = plt.subplots(1,2,figsize=(12,6))

axs[0].imshow(A_in, cmap='gray')
axs[0].set_title('Using frequencies in the mask')

axs[1].imshow(A_out, cmap='gray')
axs[1].set_title('Using frequencies outside the mask')

plt.show()

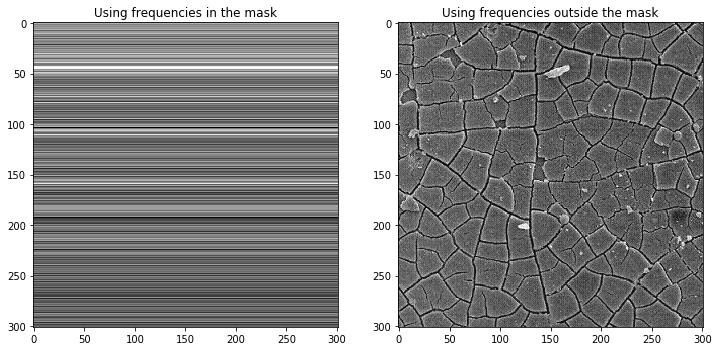

Y Frequency Mask

The left image shows the intensity changes along the y orientation.

A_in, A_out = maskfourier(A, mask_y)

fig, axs = plt.subplots(1,2,figsize=(12,6))

axs[0].imshow(A_in, cmap='gray')
axs[0].set_title('Using frequencies in the mask')

axs[1].imshow(A_out, cmap='gray')
axs[1].set_title('Using frequencies outside the mask')

plt.show()

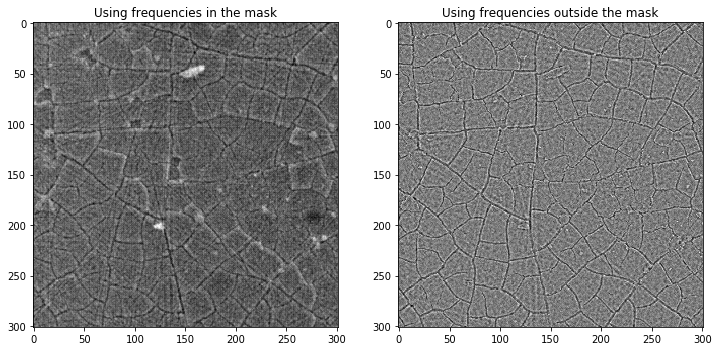

Many oriented frequencies mask (Wheel)

Here the right image clearly shows what frequencies we have removed.

A_in, A_out = maskfourier(A, mask_wheel)

fig, axs = plt.subplots(1,2,figsize=(12,6))

axs[0].imshow(A_in, cmap='gray')
axs[0].set_title('Using frequencies in the mask')

axs[1].imshow(A_out, cmap='gray')
axs[1].set_title('Using frequencies outside the mask')

plt.show()

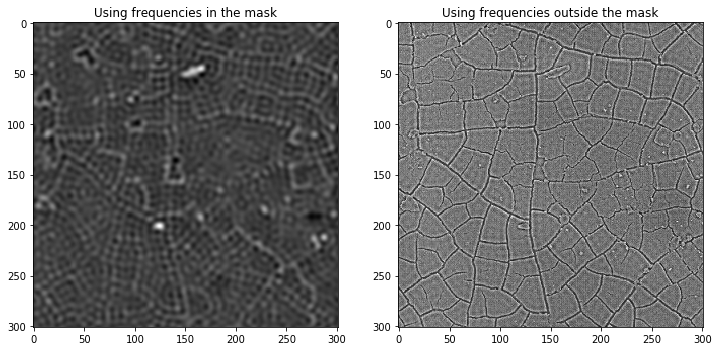

Masking only frequencies within a range.

Here low and high frequencies are removed. The image on the right shows the low frequency (long range shadows and intensity variations) and high frequeny (noise) signals removed from the image on the left.

A_in, A_out = maskfourier(A, mask_donut)

fig, axs = plt.subplots(1,2,figsize=(12,6))

axs[0].imshow(A_in, cmap='gray')
axs[0].set_title('Using frequencies in the mask')

axs[1].imshow(A_out, cmap='gray')
axs[1].set_title('Using frequencies outside the mask')

plt.show()
